MAF Configuration Practices – Add Dashboard Tile

Overview

This guide shows how to add dashboard tiles that require loading all records and performing complex data processing using DataController. This approach is needed when simple QBE filtering is not sufficient and you need to compute values across the entire dataset.

📋 Version Requirement: The mobile-shared-data-from mechanism was introduced in Maximo Application Suite (MAS) version 9.2.0. Ensure your environment is running MAS 9.2.0 or later to use this feature.

📚 For comprehensive details on cross-app data sharing, see the Cross-App Datasource Sharing Guide which covers multiple fallback sources, schema requirements, and advanced patterns.

What is a Dashboard Tile?

Dashboard tiles display key metrics and counts. This advanced approach allows you to compute complex values across all records.

Example dashboard tiles showing computed counts from multiple datasources

Use Cases:

Computing aggregated values across all records
Complex filtering logic that can’t be expressed in QBE
Calculations requiring multiple datasource fields
Custom business logic for tile values
Scenarios where page-wise loading with QBE is not possible

Prerequisites:

Understanding of datasources
Knowledge of DataController patterns
Familiarity with mobile-shared-data-from
Understanding of cross-app datasource sharing
JavaScript/ES6 knowledge

When to Use Advanced Configuration

Use this advanced approach when:

❌ QBE filtering cannot express your filtering logic
❌ You need to load ALL records from a datasource
❌ You need complex calculations across multiple fields
❌ You need custom aggregations or computations
✅ You’re willing to manage memory carefully
✅ You understand the performance implications

Important: This approach loads more data into memory. Always test on actual mobile devices to ensure acceptable performance.

Implementation

Step 1: Add datasource to allowedAllRecordsLoadDS array

In your DataController, maintain an array of datasource IDs that are allowed to load all records. This is a safety mechanism to prevent accidentally loading too much data.

DataController.js:

class DataController {

  /**
   * Datasources allowed to load all records
   * Add datasource IDs here that need full dataset for computation
   */
  allowedAllRecordsLoadDS = [
    'todaywoassignedDS',
    'reservationsListDS',

Key Points:

allowedAllRecordsLoadDS: Array of datasource IDs that can load all records
Only datasources in this array will bypass page-size limitations
This prevents accidental memory issues from loading too much data

Step 2: Create maximo-datasource with mobile-shared-data-from

Create the maximo-datasource that shares data from another app. This datasource will load all records for processing.

app.xml:

<maximo-datasource
  id="todaywoassignedDS"
  object-structure="mxapiwodetail"
  saved-query="ASSIGNEDWOLIST"
  mobile-qbe-filter="{{'status_maxvalue': '!=COMP,CAN,CLOSE,WAPPR', 'hidewo': '!=HIDE'}}"
  order-by="wopriority"
  selection-mode="none"
  offline-immediate-download="true"
  pre-load="true"

Step 3: Create JSON datasource for computed values

Create a JSON datasource to hold the computed values that will be displayed in the tile.

app.xml:

<json-datasource
  id="todaywoassignedDS_json"
  src="{[]}"
  controller="DataController"
  selection-mode="none"
  page-size="50">

  <schema id="gjw7p_JSON">
    <attribute name="wonum" searchable="true" id="g4dk9_JSON"/>

Key Points:

src="{[]}": Starts with empty array, will be populated by DataController
Includes computed attributes like computedIsOverDue and computedTotalRecords
Schema matches maximo-datasource but adds computed fields

Step 4: Implement DataController logic

Implement the DataController to load all records, perform computations, and populate the JSON datasource.

DataController.js:

class DataController {

  /**
   * Datasources allowed to load all records
   */
  allowedAllRecordsLoadDS = [
    'todaywoassignedDS',
    'reservationsListDS',
    'reservationsList4TransDS',

Step 5: Add dashboard tile

Add the dashboard tile that uses the JSON datasource with computed values.

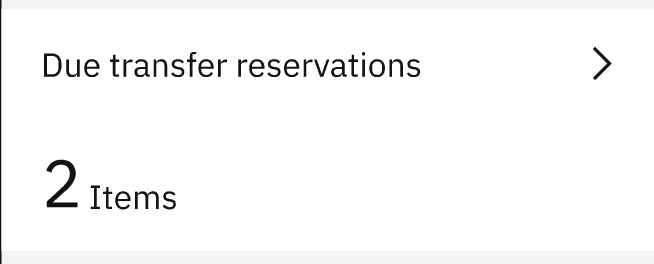

Example tiles showing “Due issue reservations” (5 Items) and “Due transfer reservations” (2 Items)

app.xml:

<page id="dashboardpage" title="Dashboard" controller="DashboardController">
  <dashboard id="dsdash1" use-with-mobile="true">

    <!-- Total work orders tile -->
    <dashboard-value-tile
      id="dsdash1_t1"
      datasource="todaywoassignedDS_json"
      size="smallwide"
      value-field="computedTotalRecords"

Complete Example

Here’s a complete example showing work order tiles with overdue calculation:

app.xml:

<?xml version="1.0" encoding="UTF-8"?>
<maximo-application id="dashboardmobile" title="Dashboard" version="9.2.4.0">

  <!-- Maximo datasource with mobile-shared-data-from -->
  <maximo-datasource
    id="todaywoassignedDS"
    object-structure="mxapiwodetail"
    saved-query="ASSIGNEDWOLIST"
    mobile-qbe-filter="{{'status_maxvalue': '!=COMP,CAN,CLOSE,WAPPR', 'hidewo': '!=HIDE'}}"

Validation & Testing

How to verify:

Check all records are loaded:
- Open browser DevTools console
- Add logging in loadAllRecords method
- Verify all pages are loaded
- Check datasource.items.length matches total count
Test computed values:
- Verify tile displays correct computed values
- Compare with manual count in source app
- Test edge cases (empty data, all overdue, etc.)
Monitor memory usage:
- Open DevTools Memory tab
- Load dashboard and check memory consumption
- Verify acceptable on target mobile devices
- Test with maximum expected data volume
Test offline mode:
- Load source app while online
- Enable airplane mode
- Open dashboard app
- Verify tiles display computed values

Common Issues:

Issue: Tiles show 0 or incorrect values
- Cause: DataController not processing data correctly
- Solution: Add logging to computeValues method, verify logic
Issue: Not all records loaded
- Cause: Datasource not in allowedAllRecordsLoadDS array
- Solution: Add datasource ID to the array
Issue: Memory issues on mobile
- Cause: Loading too many records
- Solution: Reduce data volume with better mobile-qbe-filter, or use simple configuration
Issue: JSON datasource not updating
- Cause: Datasource name mismatch or update logic error
- Solution: Verify JSON datasource name follows pattern {datasourceName}_json

Best Practices

✅ Do:

Add datasource to allowedAllRecordsLoadDS array explicitly
Use mobile-qbe-filter to reduce initial data volume
Test memory usage on actual mobile devices
Add error handling in DataController methods
Log computation steps for debugging
Document why advanced configuration is needed
Consider performance implications

❌ Don’t:

Load all records without adding to allowedAllRecordsLoadDS
Skip mobile-qbe-filter (loads unnecessary data)
Forget to test on low-end mobile devices
Perform expensive computations in tight loops
Ignore memory constraints
Use this approach when simple QBE filtering would work

Memory Optimization Tips:

Use mobile-qbe-filter to pre-filter data before loading all
Only load fields needed for computation
Clear intermediate data structures after computation
Monitor memory usage during development
Test with maximum expected data volume
Consider pagination if dataset is very large

Performance Considerations

Loading All Records:

Each loadRange call fetches one page from local database
Multiple pages = multiple database queries
Can impact performance with very large datasets
Always test with realistic data volumes

Computation Performance:

Keep computation logic efficient
Avoid nested loops where possible
Use array methods like filter, reduce efficiently
Consider caching computed values if recalculated frequently

Memory Impact:

Loading all records increases memory usage
JSON datasource adds additional memory overhead
Test on devices with limited memory (older phones)
Monitor memory in DevTools during development

Prerequisites:

Datasources Guide - Understanding datasources
Add Dashboard Tile - Simple - Simple configuration with QBE
Cross-App Datasource Sharing - Comprehensive guide on mobile-shared-data-from
Client-side Datasource Filtering - In-memory filtering

Related Practices:

Dynamic Mobile QBE Filter - Dynamic filtering
Additional Logic to Controllers - Extending controllers

Next Steps:

Consider if Simple Configuration would work for your use case
Review Performance Mobile Doclinks for optimization techniques
Learn more about Cross-App Datasource Sharing patterns

Summary

Use this advanced configuration when:

✅ QBE filtering cannot express your logic
✅ You need complex calculations across all records
✅ You need custom aggregations
✅ You’ve tested memory usage on target devices
✅ Simple configuration is insufficient

Key Components:

allowedAllRecordsLoadDS: Safety array for datasources that can load all records
maximo-datasource: Shares data from source app with mobile-qbe-filter
json-datasource: Holds computed values for tile display
DataController: Loads all records, computes values, updates JSON datasource

Remember: Always prefer the Simple Configuration when possible. Only use this advanced approach when absolutely necessary, and always test memory usage on actual mobile devices.
