Configure a predefined/default filter in application

Overview

• Display only specific work types by default (e.g., show only “Corrective Maintenance” work orders)
• Filter lists to show records for the current user’s location or organization
• Pre-apply status filters to show only active or pending records
• Set default date ranges for time-sensitive data views

• Basic understanding of Maximo datasources and object structures
• Access to modify application XML files
• Knowledge of the field names in your target object structure
• Understanding of QBE operators (in, =, !=, <, >, etc.)

Implementation

Step 1: Add QBE definition to datasource (Declarative Approach)

<maximo-datasource-override id="todaywoassignedDS" object-structure="MXAPIWODETAIL">
  <!-- Define the QBE filter with one or more fields -->
  <qbe id="listQbe">
    <!-- Filter work orders to show only Corrective Maintenance (CM) -->
    <qbe-field
      name="worktype"
      operator="in"
      value="['CM']"
      id="fieldlistQbe"
Copy to clipboardCopied!

• in - Match any value in the array (e.g., ['CM', 'EM'])
• = - Exact match (e.g., 'APPR')
• != - Not equal to
• <, >, <=, >= - Comparison operators for numbers and dates
• like - Wildcard search (use % for wildcards)

• QBE supports both EXACT and WILDCARD searches
• For multiple values, use the in operator with an array: ['CM', 'EM', 'PM']
• String values must be enclosed in quotes within the array
• The id attribute on qbe-field is required for proper component identification

Step 2: Set QBE programmatically (Alternative Approach)

/**
 * Custom Application Logic
 * Sets default QBE filters when datasources are initialized
 */
class AppCustomizations {
  /**
   * Called when the application is initialized
   * @param {Object} app - The application instance
   */
Copy to clipboardCopied!

• The setQBE method takes three parameters: field name, operator, and value(s)
• For the in operator, pass an array of values
• For other operators, pass a single value
• Multiple setQBE calls can be chained to create complex filters
• This approach executes before the datasource loads data

Validation & Testing

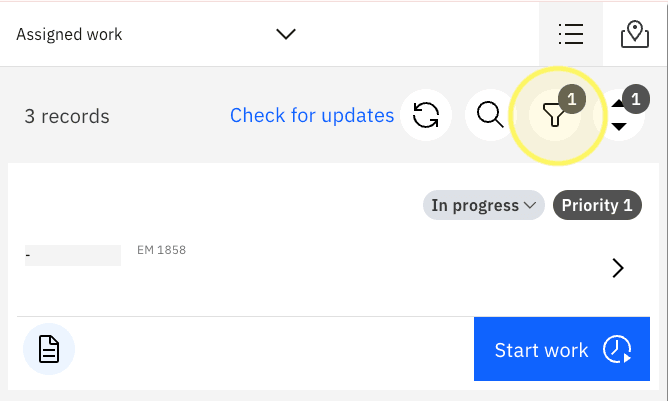

1. Test default filter application:

   • Open the application and navigate to the filtered list
   • Expected Result: The list displays only records matching the QBE criteria (e.g., only CM work orders)

2. Test filter persistence:

   • Refresh the page or navigate away and return
   • Expected Result: The default filter is reapplied automatically

3. Test user filter override:

   • Use the filter UI to change or clear the default filter
   • Expected Result: User can modify or remove the default filter as needed

4. Test with multiple QBE fields:

   • Add multiple qbe-field elements or setQBE calls
   • Expected Result: All filter conditions are applied (AND logic)

• Issue: Filter doesn’t apply when list loads

  • Cause: Field name doesn’t match the object structure attribute name
  • Solution: Verify the exact field name in the object structure definition

• Issue: Syntax error in QBE value

  • Cause: Incorrect array syntax or missing quotes
  • Solution: For in operator, use ['value1', 'value2'] format with proper quotes

• Issue: Programmatic QBE not working

  • Cause: Datasource name doesn’t match or timing issue
  • Solution: Verify datasource.name matches exactly and use onDatasourceInitialized lifecycle method

• Issue: Filter shows no results

  • Cause: QBE criteria too restrictive or values don’t exist in data
  • Solution: Test with broader criteria first, then narrow down

Best Practices

• Use the declarative XML approach for static, predictable filters
• Use descriptive IDs for qbe and qbe-field elements
• Test filter values against actual data to ensure results are returned
• Document the business reason for default filters in comments
• Consider user experience - don’t over-filter and hide too much data

• Don’t hardcode user-specific values in default filters (use dynamic approach instead)
• Don’t create filters that return empty results for most users
• Don’t forget to include the field in the datasource schema
• Don’t use complex wildcard patterns that impact performance
• Don’t mix declarative and programmatic approaches for the same datasource

• Default filters reduce the initial data load, improving performance
• Use indexed fields in QBE filters for faster query execution
• Avoid wildcard searches at the beginning of strings (e.g., %value)
• Consider the data volume - filters should reduce results to manageable sizes

• Ensure users have permission to view the filtered data
• Don’t use filters to enforce security - use proper Maximo security groups
• Be aware that users can modify or remove default filters
• Consider data privacy when setting organization or location filters

Related Resources

• Understanding Datasources - Learn about datasource configuration
• Maximo Object Structures - Understanding object structure fields

• Client-side datasource filtering - Filter data after loading
• Modify default queries - Customize datasource queries
• Update app saved query - Work with saved queries
• Combine static and dynamic filters - Advanced filtering techniques

• Dynamic mobile filter - Create filters based on runtime conditions
• Add query to SR app - Advanced query configuration

• IBM Maximo Mobile Framework Documentation
• Maximo Query By Example (QBE)

Additional Notes

• QBE functionality is available in all versions of Maximo Mobile Framework
• The declarative XML approach is the standard method across all versions
• Programmatic setQBE method is available in MAF 8.2 and later

• Default filters help reduce data sync requirements in mobile applications
• Consider offline scenarios - filters should work with locally cached data
• Mobile users benefit from pre-filtered lists to reduce scrolling and search time
• Test filters on mobile devices with limited connectivity

• Combine multiple qbe-field elements for complex AND conditions
• Use the programmatic approach to set filters based on user profile or preferences
• Clear existing QBE filters with datasource.clearQBE() before setting new ones
• Access current QBE state with datasource.getQBE() for debugging
• Use QBE with saved queries for powerful filtering combinations

• Enable datasource logging: this.app.log.d('QBE', datasource.getQBE())
• Check browser console for QBE-related errors during datasource initialization
• Verify field names match exactly (case-sensitive) with object structure
• Test QBE values in Maximo’s Query Builder to validate syntax
• Use browser developer tools to inspect the actual REST API query being generated
